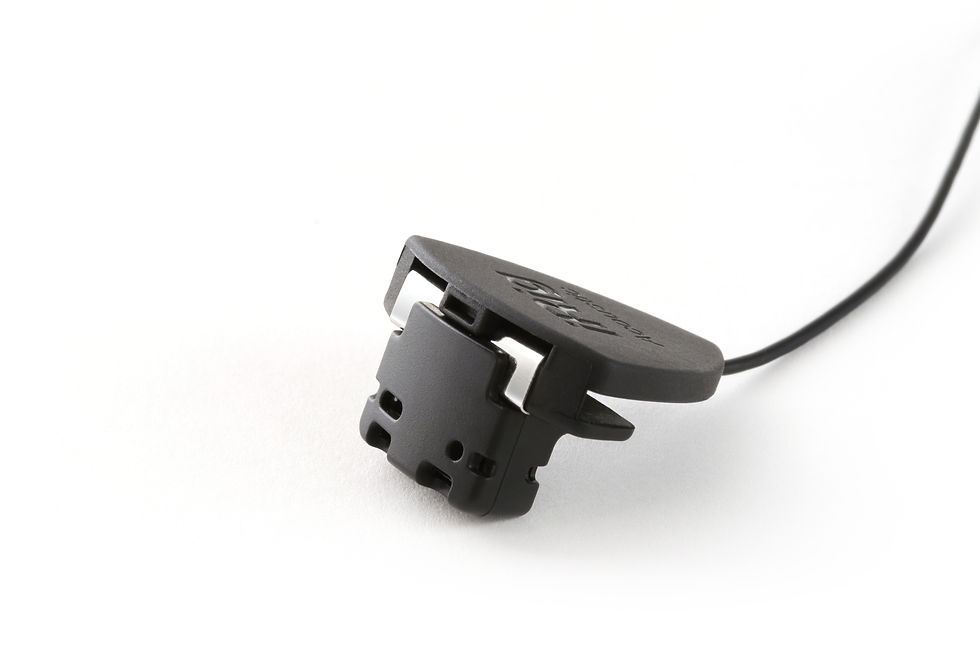

Dedicated iRig Acoustic Microphone

• Microphone Type: MEMS
• Polar Pattern: omnidirectional
• Frequency Response: 30 Hz - 20 kHz, +/-3dB
• Max SPL: 130dB SPL
• Signal-to-Noise Ratio: 101 dBA
• Maximum soundboard thickness: 4mm / 0.16"

Connections

• Dedicated iRig Acoustic Microphone Input:
  2.5mm / 3/32" TS mono jack
• AUX Instrument Input Connector:
  6.3mm / 1/4" TS mono jack
• AUX Instrument Input Impedance:
  1 MOhms
• Analog Output Connector:
  6.3mm / 1/4" TS mono jack, line-level, low impedance
• Analog Output Impedance:
  50 Ohms (can drive long cables without any loss)
• Digital Output Connector:
  micro-USB

DSP/Interface

• AD and DA Resolution:
  32-bit
• Sampling Rate:
  48 kHz
• Interface Output:
  USB class compliant audio output via micro-USB port
• Power:
  battery power (2xAA), USB bus power
• Battery Life:
  approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)

Package includes

• iRig Acoustic Stage DSP/interface
• iDedicated iRig Acoustic microphone
• iBelt clip
• iCarrying case
• i2 x 1.5V AA Battery

Dimensions

• DSP/Interface size: 101mm/3.98" x 72.3mm/2.85" x 23mm/0.91" (belt clip excluded)
• DSP/Interface weight: 99g/3.49oz (batteries excluded)
• Microphone size: 31.7mm/1.25" x 32.2mm/1.27" x 18.8mm/0.74"
• Microphone weight: 20g/0.71oz
• Microphone cable length: 150cm/59.1"

Computers

• Mac®:
  Mac OS X 10.6 or later. One free USB port. A USB to Micro-USB cable (sold separately) is required.
• Windows®:
  Fully supports Windows 10 WASAPI for low latency audio. One free USB port. (ASIO4ALL is required on Windows 7 and 8 for low latency audio. See our FAQ here for further details.)
• A USB to Micro-USB cable (sold separately) is required.

iOS Devices

• Compatible with any iPhone 12, 11, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.
• A USB to Micro-USB cable (sold separately) and a Lightning to USB Camera Adaptor (sold separately) are required.
• Also compatible with all newer iPhone, iPad and iPod touch models.

Android Devices

• Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
• A Micro-USB-OTG to Micro-USB cable (sold separately) is required.

Important Remarks for Android devices:

• Due to open source OS development subject to smartphone manufacturers, iK product does not guarantee its product compatibility on any Android devices. Do NOT purchase should you concern with this.

(EAN/UPC 8025813709034)
