• Incredible volume and ultra-flat response
• iLoud physics-defying bass down to 36 Hz
• Improved linear phase offers even more clarity
• Perfectly time-aligned to reduce ear fatigue

• MTM design minimizes troublesome reflections
• Built-in ARC self-calibration adjusts to any space
• Deeply customizable with X-MONITOR software
• Tilting base plus threaded insert for mounting

• Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
• LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
• HF drivers: 1" low distortion, back chambered silk dome tweeter
• Acoustic design: DSP tuned bass reflex
• Number of amps per speaker: 2
• Amplifiers type: High efficiency Class-D
• Total power: 100 W RMS
• LF power: 70 W RMS
• HF power: 30 W RMS
• Crossover type: Digital, linear phase
• Crossover frequency: 2.8 kHz
• Frequency response: 48 Hz to 28 kHz ± 2 dB, 36 Hz to 32 kHz @ -10 dB
• Phase response: System remains coherent within +/- 15° from 200 Hz to 20 kHz
• Sensitivity at +4 dBu: -6 dBu signal generates a 94 dB SPL @ 1 m
• Sensitivity at -10 dBV: -17 dBu signal generates a 94 dB SPL @ 1 m
• Continuous, long term SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 97 dB
• Peak SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 110.5 dB
• Peak SPL, half space, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 112.5 dB
• Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
• LF extension switch: Sets -3 dB point of the frequency response at 40, 50, 60 or 80 Hz (LFE)
• LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
• HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
• Desk switch: -4 dB at 160 Hz and +1 dB at 1.8 kHz
• Calibration: Fully automatic and built-in digital calibration
• Full DSP control
• Total Latency (TOF): 2.44 ms
• Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B, AC POWER socket
• Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 120 W max power consumption

Dimensions

• Size: 264 mm/10.39" x 160 mm/6.3" x 130 mm/5.12"
• Weight (per speaker): 2, 5 kg/5.5 lbs (speaker + foot)

• 2 x iLoud MTM MKII monitor
• 2 x Power cord
• 2 x Tilting stand
• 2 x Horizontal support feet
• 2 x Locking key

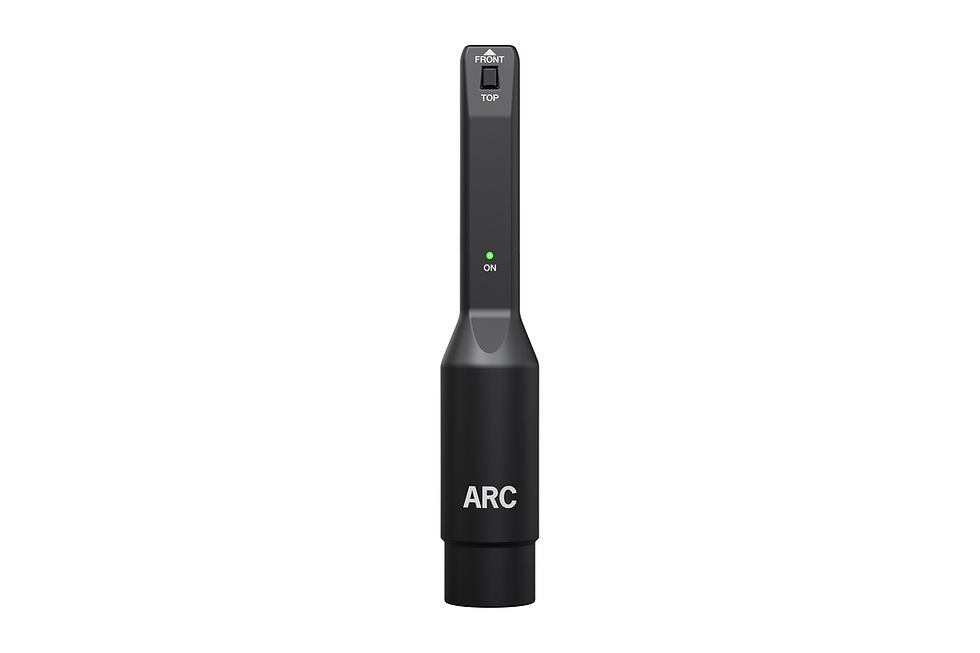

• 1 x ARC Microphone
• 1 x ARC Microphone clamp
• 1 x XLR to 1/8” (3.5mm) TS cable for ARC microphone (2.5m/8.2ft)

X-MONITOR

Explore new sonic territory

Introducing X-MONITOR, an advanced control application for iLoud studio monitors, assisting with acoustic self-calibration and enabling extended acoustic and voicing adjustments. Think of X-MONITOR as your Mac/PC command post for all the superb audio processing features built into iLoud Precision.

Download here.
